OpenEarable v1.3 - Starter Bundle

OpenEarable v1.3 - Starter Bundle

€998,00 EUR
€998,00 EUR
Sale Sold out

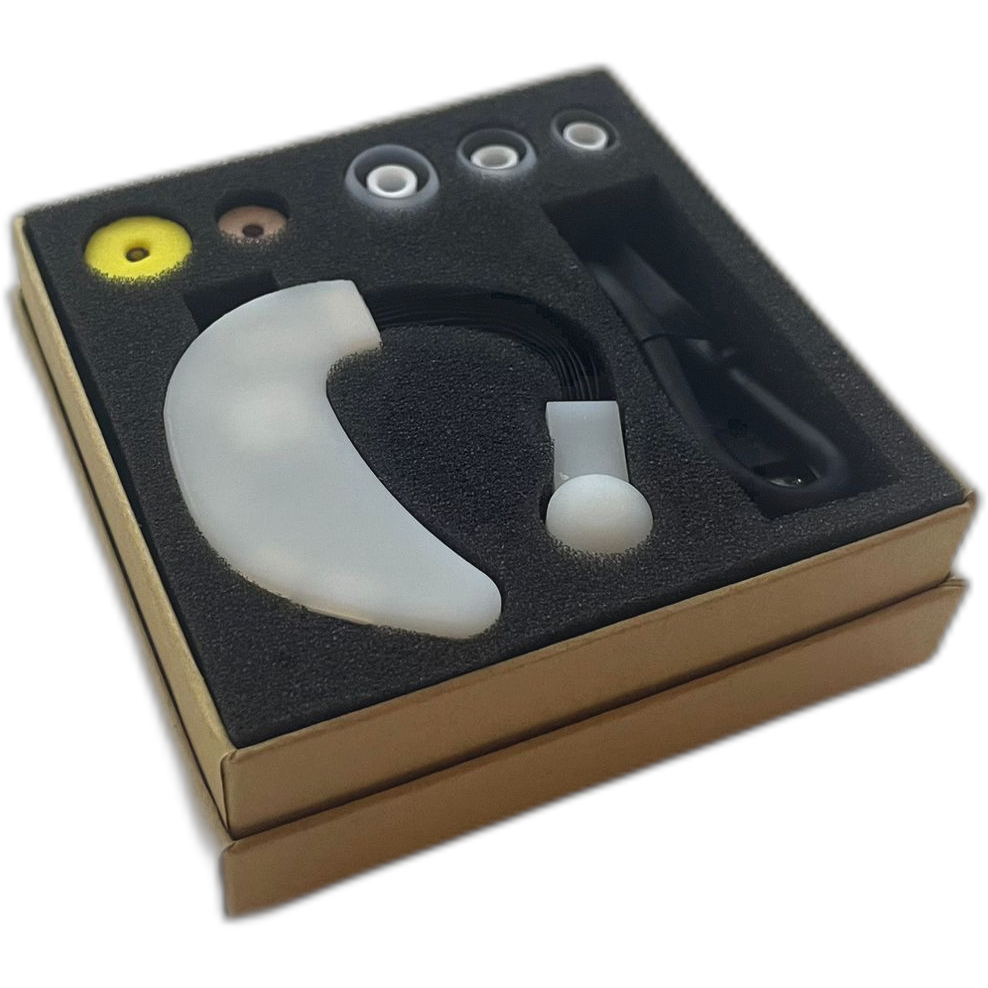

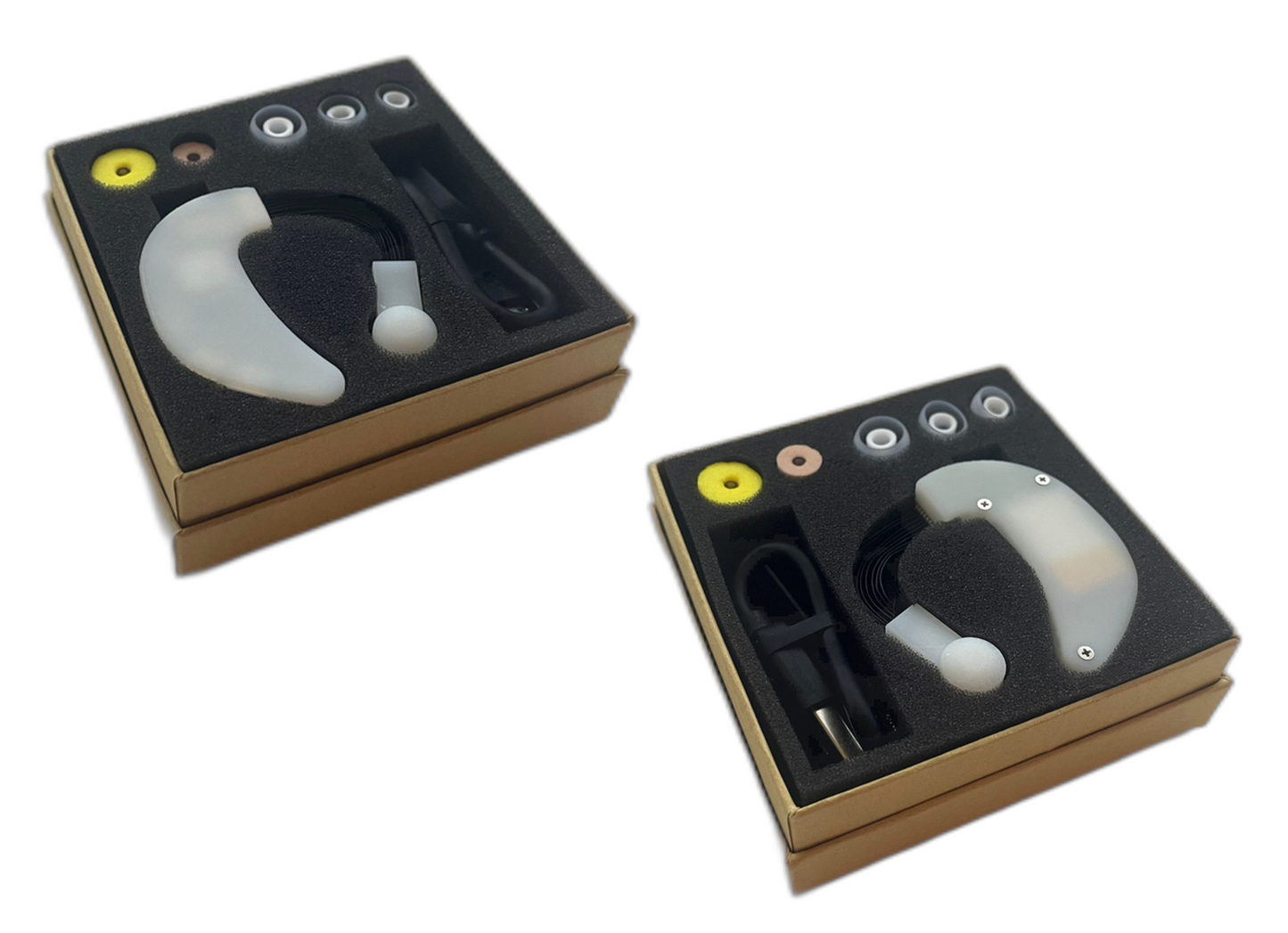

The OpenEarable starter bundle is fully assembled and includes everything that you need to get started with developing ear-based sensing applications.
  • 1 × OpenEarable (left or right)
  • 2 × eartip foam (M, L)
  • 3 × eartip silicone (S, M, L)
  • 1 × microSD card reader
  • 1 × microUSB cable

This is a developmet kit. It is not intended for resale to end users and shall be used for non-medical applications only.

View full details

To learn more about the features and capabilities of OpenEarable please have a look at the official website.

You can always assemble OpenEarable yourself using the online resources.

OpenEarable Website

Sensors

  • Ultrasound-Capable Microphone

    OpenEarable comes equipped with an ear canal facing microphone that is capable of capturing ultrasound audio signals. Per default, up to 62.5 kHz are supported to be recorded on the internal microSD card of OpenEarable.

  • 9-axis Inertial Measurement Unit

    Inside the main body behind the ear sits a 9-axis inertial measurement unit consisting of an accelerometer, a gyroscope and a magnetometer. Per default, OpenEarable allows streaming IMU data in real-time at up to 50 Hz via BLE.

  • Ear Canal Pressure Sensor

    OpenEarable has an inward facing pressure sensor that makes it possible to measure pressure changes in the sealed ear canal. Using the foam eartip of OpenEarable, it is possible to get precise measuremnts up to 30Hz streamed via BLE.

Actuators

  • Speaker

    The speaker inside OpenEarable supports playing audio files from the internal microSD card. It is also possible to generate constant frequency tones directly on the device or to trigger eight different jingles via BLE.

  • RGB LED

    OpenEarable has an RGB color LED in the main enclosure behind the ear. The color can be freely configured via BLE.

  • Button and Switch

    The button on OpenEarable can be used to trigger events that are notified via BLE. The switch is used to turn on/off the device.

Software

  • OpenEarable Dashboard

    The OpenEarable dashboard runs directly inside your browser. No download or installation is required as it works via WebBLE. You can control sensors and audio of OpenEarable.

  • OpenEarable Mobile App

    A mobile Flutter app for Android and iOS let's you control OpenEarable. It offers the same features as the web dashboard and also a series ofearable apps(e.g., a posture tracker).

  • JS and Flutter Library

    To develop custom tooling, the OpenEarable libraries provides all abstractions and simplify development.

Shipping and Import

ALL OpenEarable orders ship from Germany. We ship worldwide!

Please be advised that product prices do not include customs fees, import taxes, brokerage fees, or any customs clearance fees. This is the responsibility of the customer.

Disclaimer

OpenEarable products are not medical devices nor are they intended for medical diagnosis and are provided to you "as is," and we make no express or implied warranties whatsoever with respect to its functionality, operability, or use, including, without limitation, any implied warranties, fitness for a particular purpose, or infringement. We expressly disclaim any liability whatsoever for any direct, indirect, consequential, incidental or special damages, including, without limitation, lost revenues, lost profits, losses resulting from business interruption or loss of data, regardless of the form of action or legal theory under which the liability may be asserted, even if advised of the possibility of such damages.
